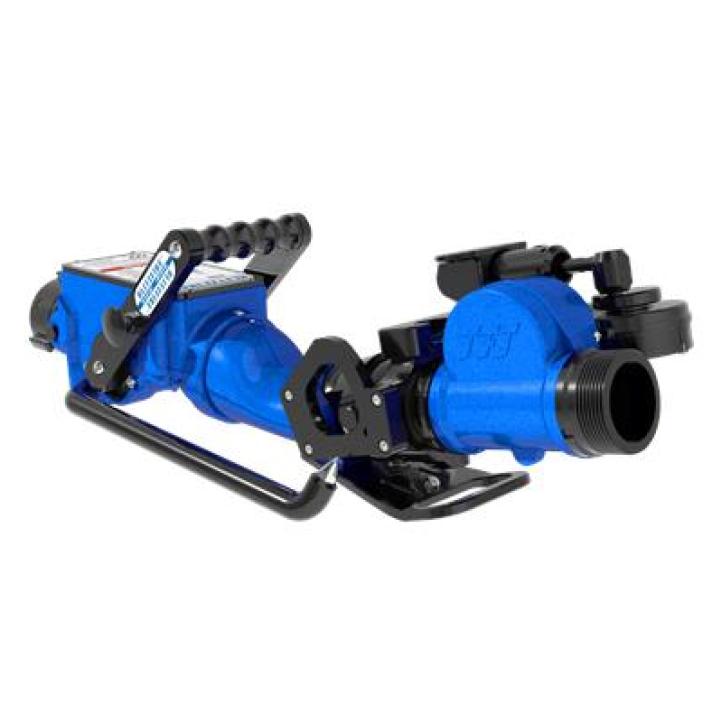

The BlitzFire® HE (High Elevation) is TFT's safest, lightest, and most versatile initial attack monitor. Delivers 500 GPM (2000 LPM) flow and reaches 86° elevation vs the standard 46°. Self-oscillating water-driven turbine automatically sweeps 20°, 30°, or 40° either side of centre. Exclusive Safety Shut-Off Valve automatically stops water flow if the monitor slides or lifts.

The BLITZFIRE® offers a safe initial attack, even with limited staff. With a flow rating up to 500 gpm (2000 l/min), it integrates an exclusive safety shutoff valve that reduces risk from an out of control appliance. The valve closes quickly if the monitor starts to slide. The monitor’s compact and lightweight design can operate UNATTENDED at a low angle of 10 degrees, this is much lower than the nearest competition which can only do 20 degrees unattended, and incorporates an exclusive slide valve for complete Firefighter flow control. The series offers additional features including oscillation and high elevation (HE).

Key Features

  • Flow: up to 500 GPM (2000 LPM)
  • HE High Elevation: 10° to 86° elevation (standard BlitzFire: 10° to 46°)
  • Self-oscillating water-driven turbine: 20°, 30°, or 40° sweep angle
  • Exclusive Safety Shut-Off Valve — automatically stops flow if monitor slides or lifts
  • Patented turbulence-free slide valve — 6 detent flow positions
  • Low 10° attack angle — usable indoors and on stair landings
  • Heavy-duty carbide-tipped legs | Anchor strap included | Stainless steel storage bracket

Model

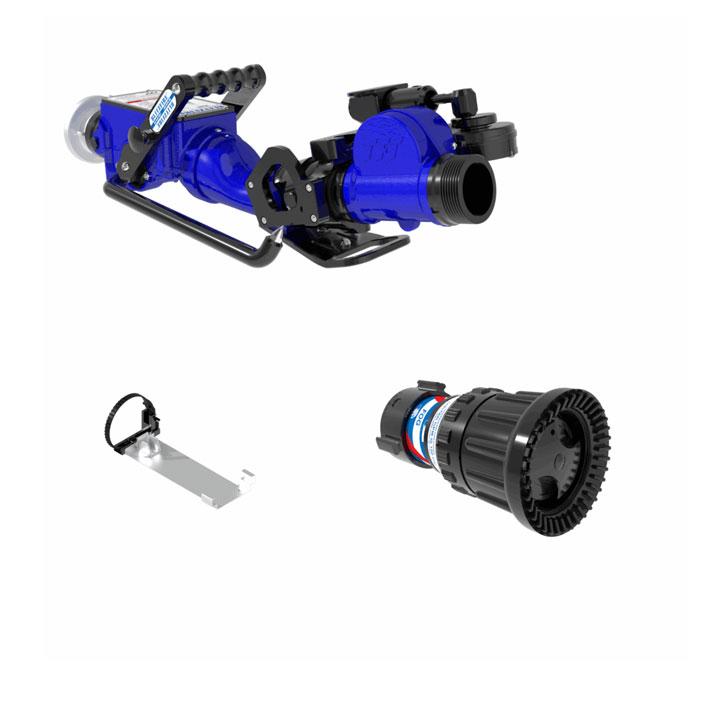

XXC-33-HE (BlitzFire HE Oscillating Package)

Flow Rate

Up to 500 GPM (2000 LPM)

Elevation Range

10° (low attack) to 86° above horizontal

Oscillation

Water-driven turbine: 20°, 30°, or 40° sweep either side of centre

Safety Shut-Off

Automatic — stops flow if monitor slides or lifts

Slide Valve

6 detent flow positions — turbulence-free, patented

Stowed Size

37.3"L × 10.5"W × 9.5"H (94.7 × 26.7 × 24.4 cm)

Weight

34.9 lb (15.8 kg)

Inlet

2.5" NH (65mm) swivel rocker lug coupling (standard)

Certifications

FM Approved | CE Marked | EN 15767-1

Website

tft.com/product/xx211a-he/
