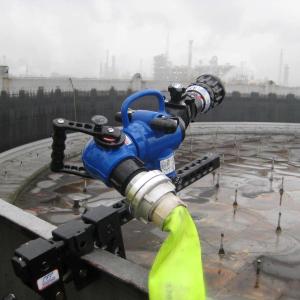

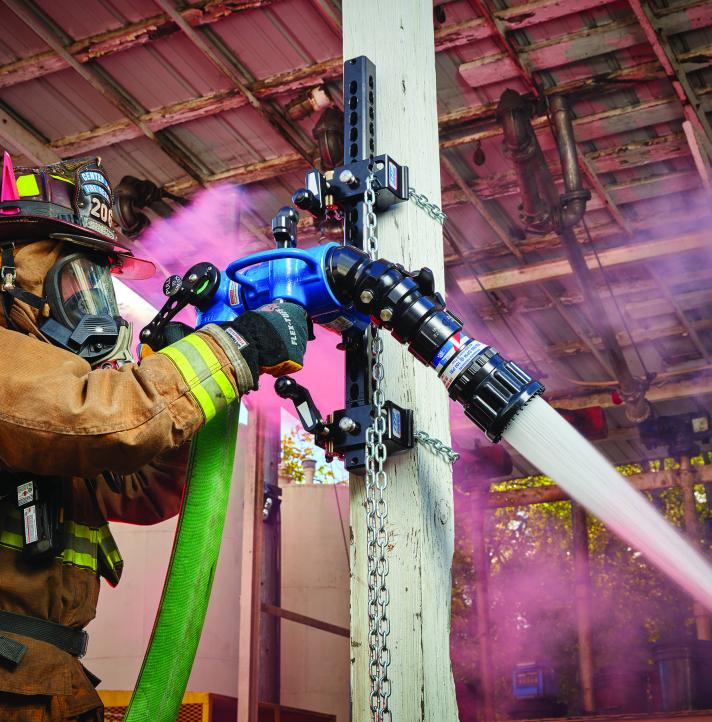

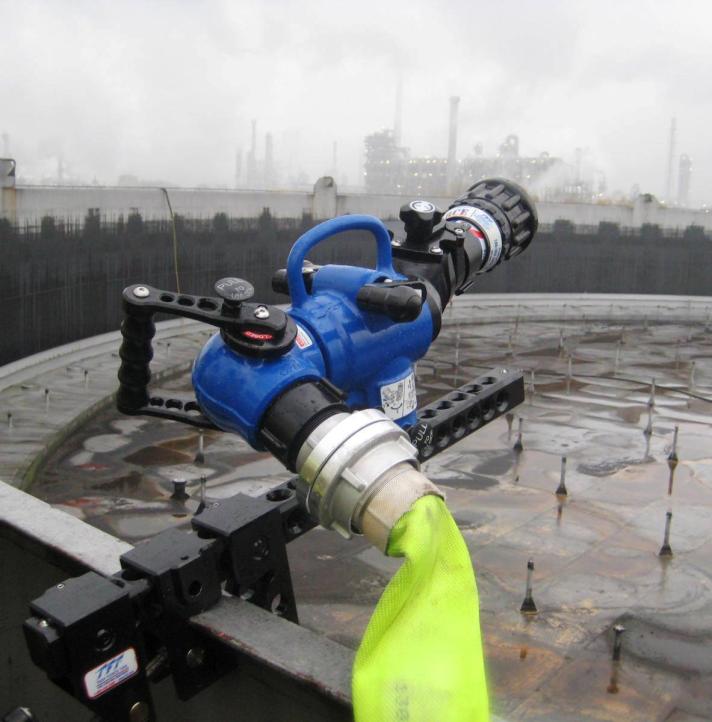

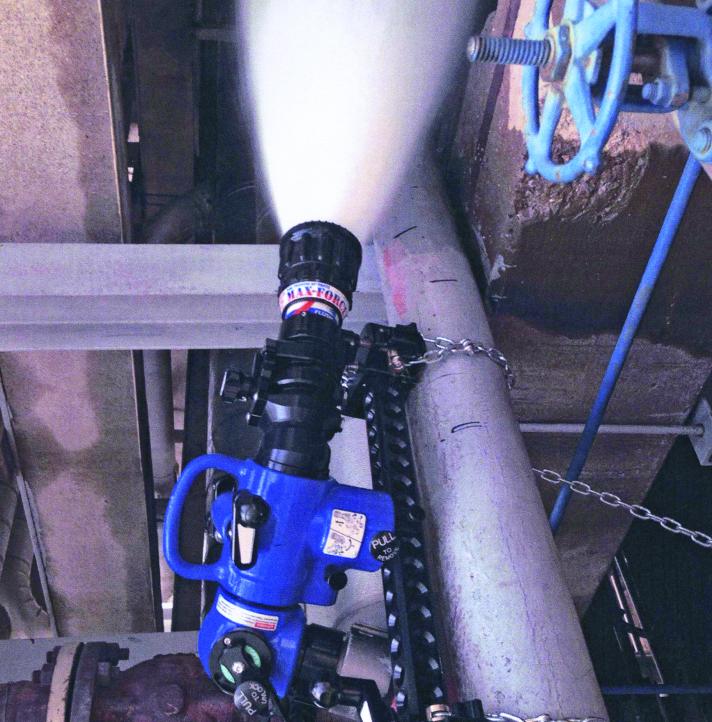

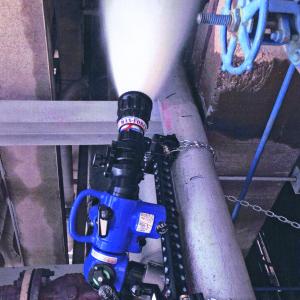

The Hemisphere is a versatile, lightweight, and quick to deploy portable monitor that gives the user the ability to quickly establish water flow in locations that ground monitors cannot. Since the Hemisphere doesn’t rely on gravity for stability, it can be pointed horizontal and down, in addition to up, unlike portable ground monitors. The rotating, swiveling waterway, allows the stream to be pointed in virtually any direction, within a hemispherical range without interrupting water flow. A variety of mounts, including, an I-beam clamp that doubles as a 2" hitch mount, a dedicated hitch mount, and fixed mounts, provide the user the ability to quick attached the monitor, and establish coverage on the fire ground, or in pre-planned locations. An integrated, quarter turn, aluminum half ball calve, with locking bail handle, provides shutoff capability. The monitor and valve bodies are hard coat anodized aluminum inside and out with a blue TFT powder coat finish.

Comprehensive Mountable Monitor Packages for Precision Firefighting

The Hemisphere™ Mountable Monitor Packages deliver high-flow water performance with the included nozzle and mounting solution. With flow capabilities up to 500 GPM (2000 LPM), this package is designed to tackle challenging firefighting environments, offering 360-degree rotation and 80-degree pivoting for precise water stream control. The package’s quick-attach mounting system and included nozzle allow for rapid setup and streamlined deployment, making it ideal for confined, elevated, or hard-to-reach areas where flexibility and accuracy are crucial for industrial or municipal fire departments.

Key Features:

• Flow Capacity : Delivers up to 500 GPM (2000 LPM), ideal for a range of firefighting applications
• 360° Aiming : Allows water to be directed precisely, enhancing flexibility in confined spaces

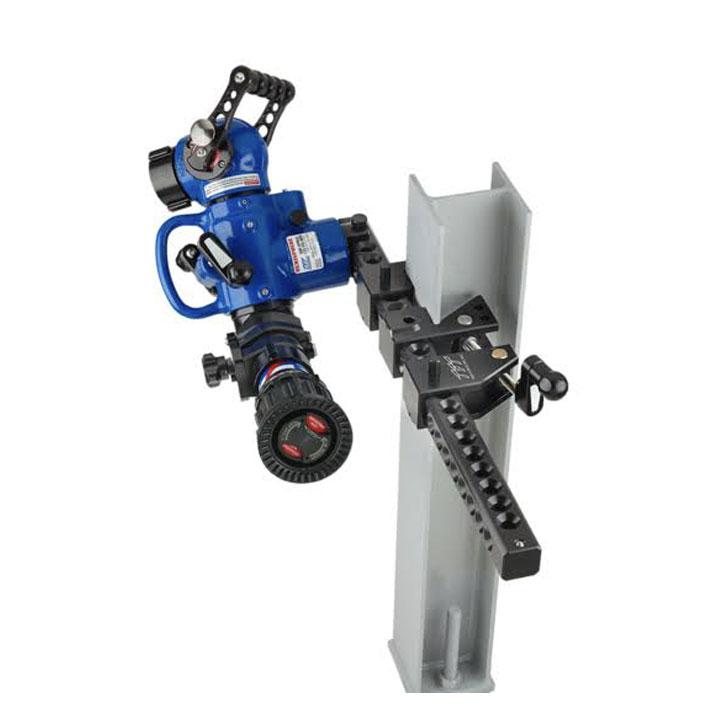

• Quick-Attach Mounting System : Securely mounts to various surfaces, with options like I-beam, hitch, and tank lip clamps for versatile use
• Lightweight Aluminum Construction : Easy to transport with a built-in carrying handle, ensuring quick setup and deployment
• Water Pressurized Safety Pins : Prevents accidental rotation/release during operation, adding safety and control
• Adjustable Stream Straightener : Built-in straightener ensures optimized stream reach and minimal turbulence
• Flow Control : Quarter-turn ball valve with a locking bail handle for precise flow management and to prevent unintentional discharge
• Wide Compatibility : Standard inlet and outlet sizes of 2.5” NH or BSP fittings, with options for Storz and other quick-connect attachments

This Package Includes:

• HPM-H – Flex Clamp & 2” Hitch Mount

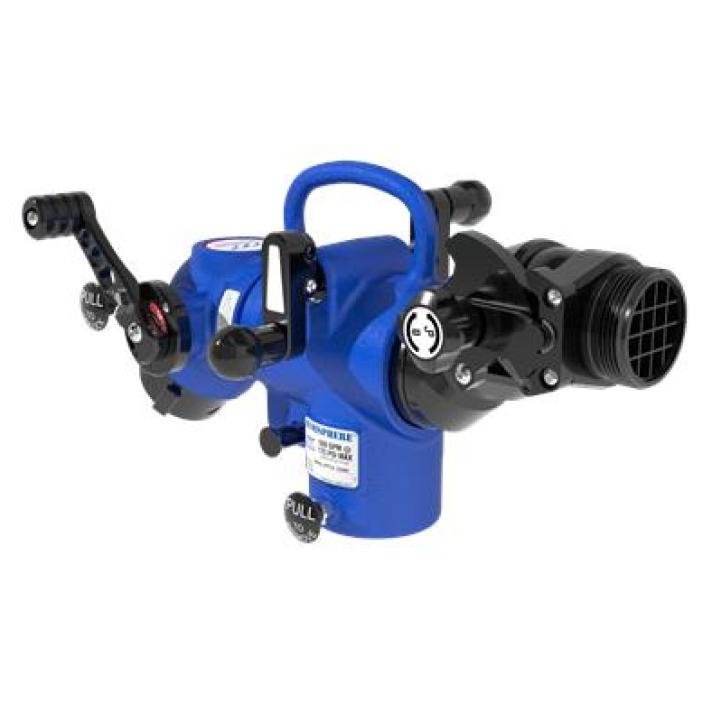

• HPM111A – Hemisphere Mountable Monitor – 2.5″ NHF Swivel Inlet, 2.5″ NHM Rigid Outlet
• MD12A – Max-Force Automatic Nozzle, 2.5″ NH Female, 100-500 GPM (380-1900 LPM) @ 55 or 100 PSI (4 or 7 Bar)
