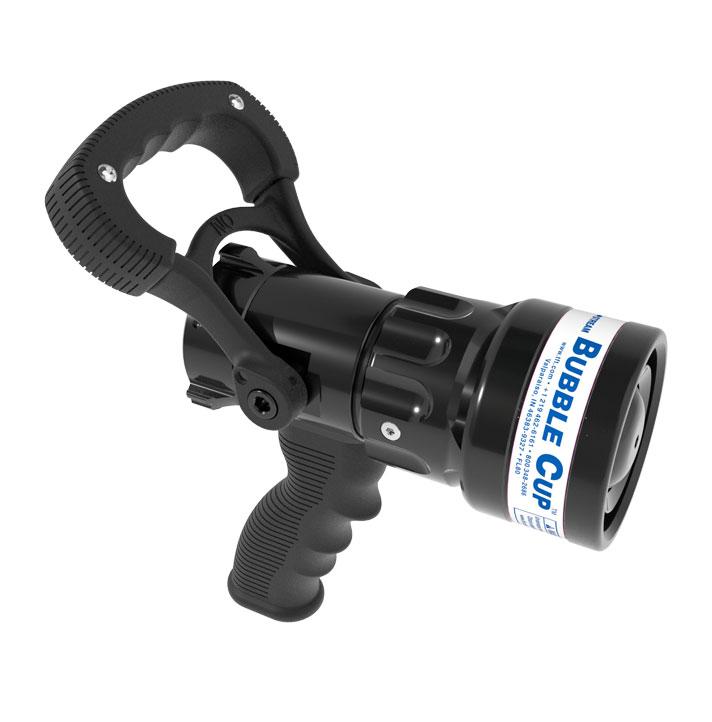

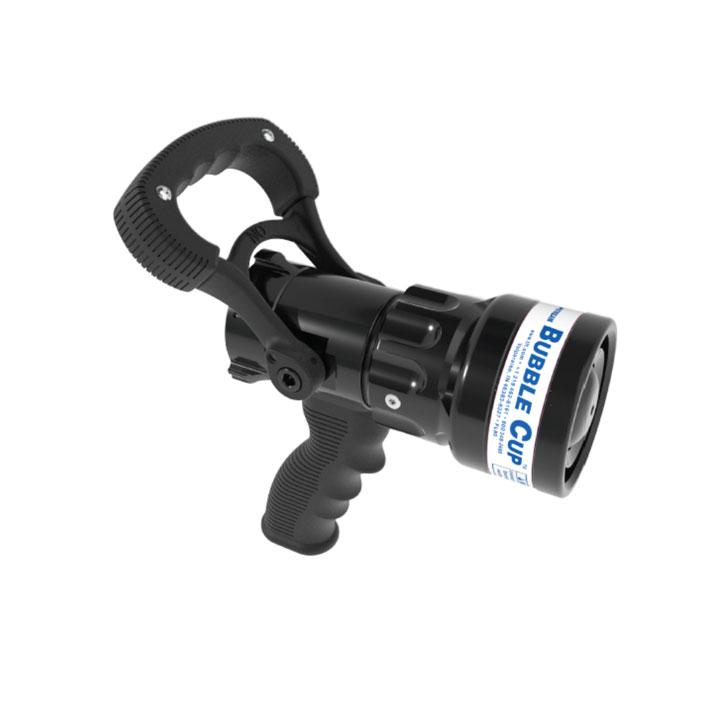

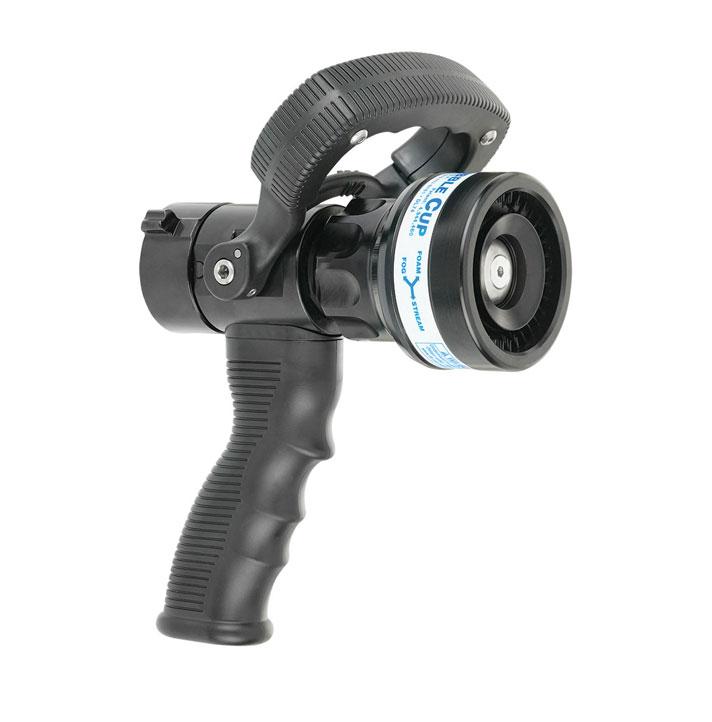

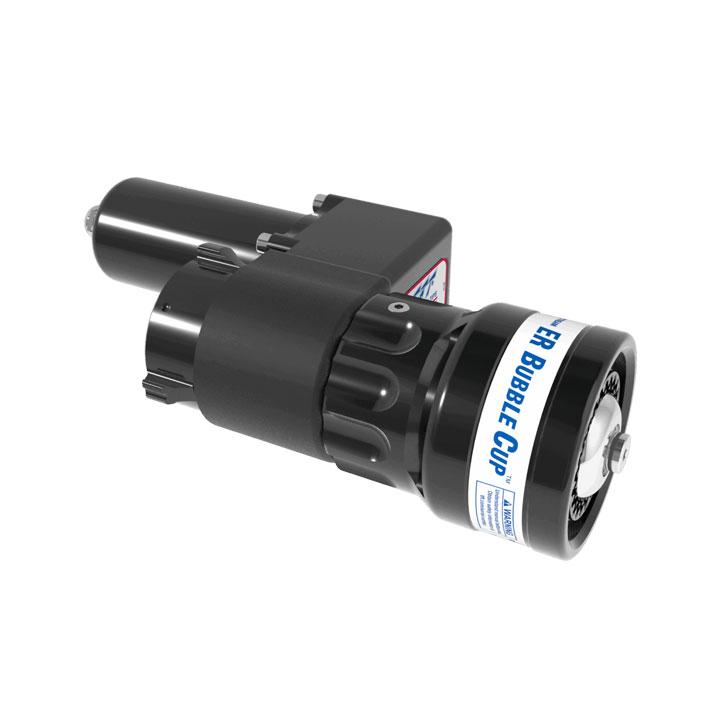

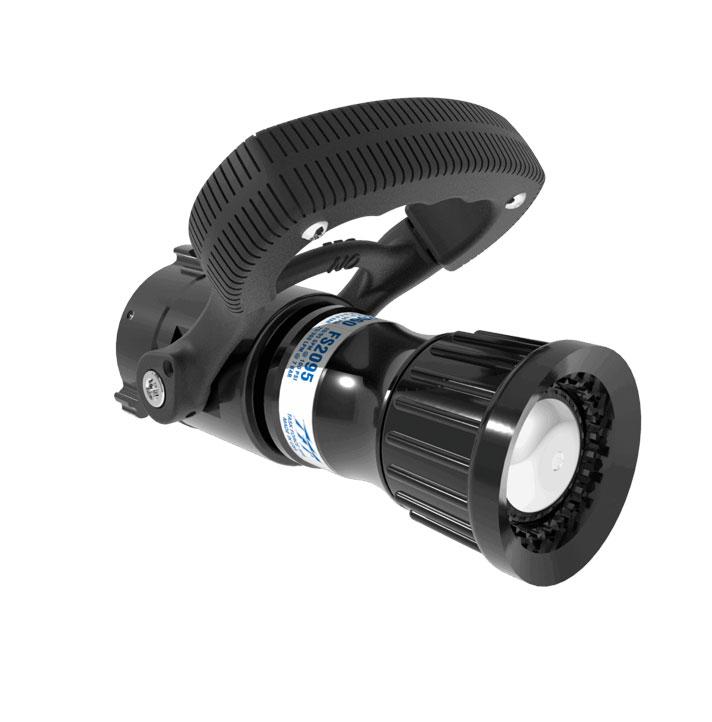

TFT Water & Foam Nozzle— Bubble Cup
TFT Water & Foam Nozzle— Bubble Cup

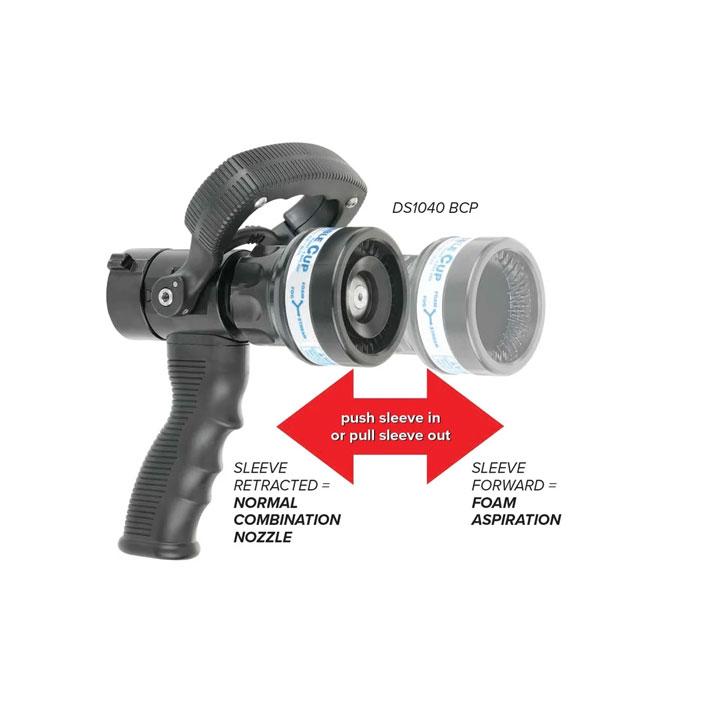

The TFT Bubble Cup® 38mm series is a unique combination nozzle capable of producing aspirated foam, straight stream, and a wide fog pattern — all in one nozzle. Outer sleeve retracted: standard combination nozzle. Sleeve forward: full foam aspiration mode.
A unique combination nozzle capable of producing aspirated finished foam, conventional straight stream and a wide fog pattern.
The Bubble Cup offers versatility not found in any other aspirating foam nozzle.
Key Features
- Three-in-one nozzle: aspirated foam + straight stream + fog pattern
- Dual gallonage models: two flow settings at 7 bar for versatility
- Quick-change rear valve seat for easy field servicing
- Stainless steel shut-off ball — positive shut-off | All lightweight hardcoat anodized aluminum
- Available with folding pistol grip (Bubble Cup F-Series)
- Suitable for Class A and Class B foam operations
FS95BCP | Single flow: 360 l/min @ 7 bar | 38mm NH Rocker Lug Swivel | With Pistol Grip |
FS2060BCP | Dual flow: 75 & 230 l/min @ 7 bar | 38mm NH Rocker Lug Swivel | With Pistol Grip |
FS2095BCP | Dual flow: 75 & 360 l/min @ 7 bar | 38mm NH Rocker Lug Swivel | With Pistol Grip |
Operating Pressure | 7 bar (100 psi) |
Inlet Thread | 38mm NH (1.5") |
Length | 18.4 – 24.8 cm (with pistol grip) |
Weight | 1.5 kg (with pistol grip) |
Foam Compatibility | Class A and Class B foam concentrates |
Website | tft.com/product-category/nozzles/ |
