TFT Portable Water Monitor - CrossFire
TFT Portable Water Monitor - CrossFire

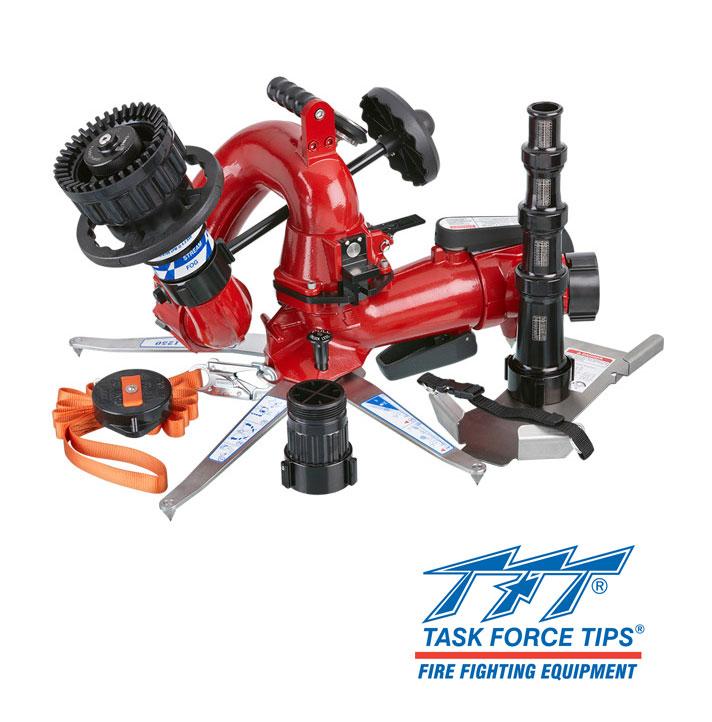

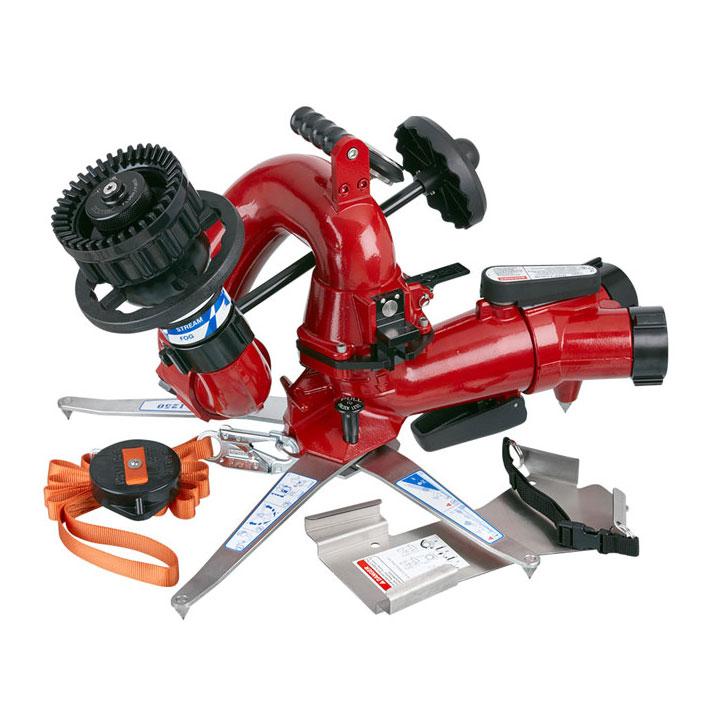

The TFT CrossFire® XFC-322BICJ3 is a high-capacity portable water monitor combining the SAFE-TAK base with dual 2.5" BIC Male inlets and a MasterStream nozzle. Rated for 1000–4000 LPM @ 7 bar with 360° horizontal rotation and up to 90° vertical elevation. ISO 9001 certified.
Key Features
- High capacity: 1000/1500/2000/2500/3000/4000 LPM @ 7 bar selectable
- Dual 2.5" BIC Male Instantaneous Coupling inlets — Indian market standard
- 360° full horizontal rotation with reliable locking mechanism
- Vertical elevation: up to 90° — 35° elevation pin stop for safe operation
- MasterStream nozzle — selectable smooth bore and fog patterns
- Compatible with water and foam suppression systems | ISO 9001 certified
TFT Reference Package | CROSSFIRE XFC-322BICJ3 |
Base Model | XFH-2BIC — Safe-Tak Base with Dual 2.5" BIC Male Inlets |
Monitor Top | XFT-BJ — CrossFire Monitor Top, 2.5" Outlet |
Nozzle | M-RS4000-BJ — MasterStream Nozzle |
Flow Rate (Selectable) | 1000 / 1500 / 2000 / 2500 / 3000 / 4000 LPM @ 7 bar |
Horizontal Rotation | 360° with locking mechanism |
Vertical Elevation | 0° to 90° (35° pin stop) |
Inlet Connection | Dual 2.5" BIC Male Instantaneous Coupling |
Monitor Top Weight | 16.7 lb (7.6 kg) |
Portable Base Weight | 29.1 lb (13.2 kg) |
Master Stream Nozzle Weight | 9.0 lb (4.1 kg) |
Certifications | FM Approved | CE Marked | ISO 9001 |
Website | tft.com/series/crossfire/ |
