The BlitzFire® HE (High Elevation) is TFT's safest, lightest, and most versatile initial attack monitor. Delivers 500 GPM (2000 LPM) flow and reaches 86° elevation vs the standard 46°. Self-oscillating water-driven turbine automatically sweeps 20°, 30°, or 40° either side of centre. Exclusive Safety Shut-Off Valve automatically stops water flow if the monitor slides or lifts.
The BLITZFIRE® offers a safe initial attack, even with limited staff. With a flow rating up to 500 gpm (2000 l/min), it integrates an exclusive safety shutoff valve that reduces risk from an out of control appliance. The valve closes quickly if the monitor starts to slide. The monitor’s compact and lightweight design can operate UNATTENDED at a low angle of 10 degrees, this is much lower than the nearest competition which can only do 20 degrees unattended, and incorporates an exclusive slide valve for complete Firefighter flow control. The series offers additional features including oscillation and high elevation (HE).
Key Features

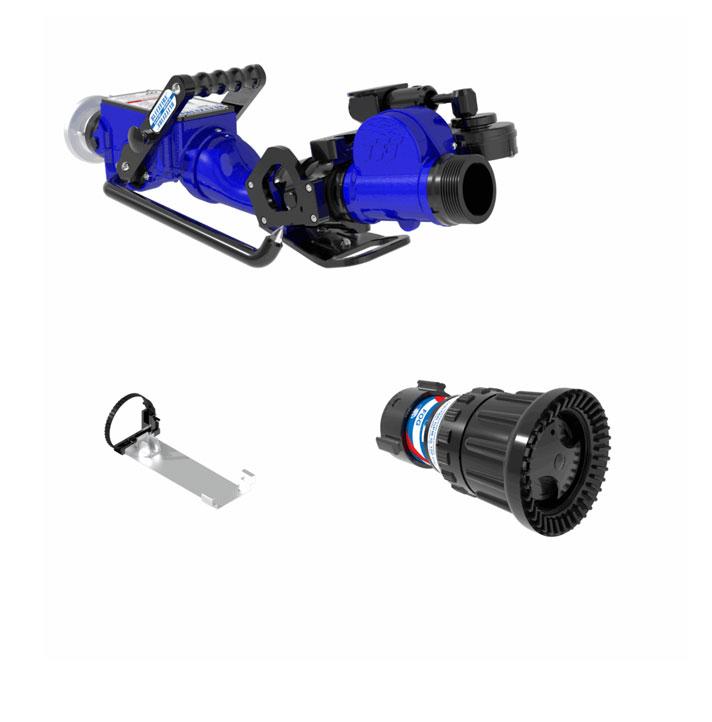

Model | XXC-33-HE (BlitzFire HE Oscillating Package) |
Flow Rate | Up to 500 GPM (2000 LPM) |
Elevation Range | 10° (low attack) to 86° above horizontal |
Oscillation | Water-driven turbine: 20°, 30°, or 40° sweep either side of centre |
Safety Shut-Off | Automatic — stops flow if monitor slides or lifts |
Slide Valve | 6 detent flow positions — turbulence-free, patented |
Stowed Size | 37.3"L × 10.5"W × 9.5"H (94.7 × 26.7 × 24.4 cm) |
Weight | 34.9 lb (15.8 kg) |
Inlet | 2.5" NH (65mm) swivel rocker lug coupling (standard) |
Certifications | FM Approved | CE Marked | EN 15767-1 |
Website | tft.com/product/xx211a-he/ |
