TFT Fire Fighting Nozzle - Selectable
TFT Fire Fighting Nozzle - Selectable
TFT Fire Fighting Nozzle - Selectable

TFT Fire Fighting Nozzle - Selectable

Based on a highly customizable global nozzle platform design, the unique G-Force series of fixed, selectable, and automatic nozzles combine over 40 years of Task Force Tips design innovation and experience into true next generation firefighting tools. Incorporating unique performance components such as a stainless steel slide valve, inlet debris screen and protective fog pattern choices, the G-Force series delivers high performance and rugged dependability in a low cost package.

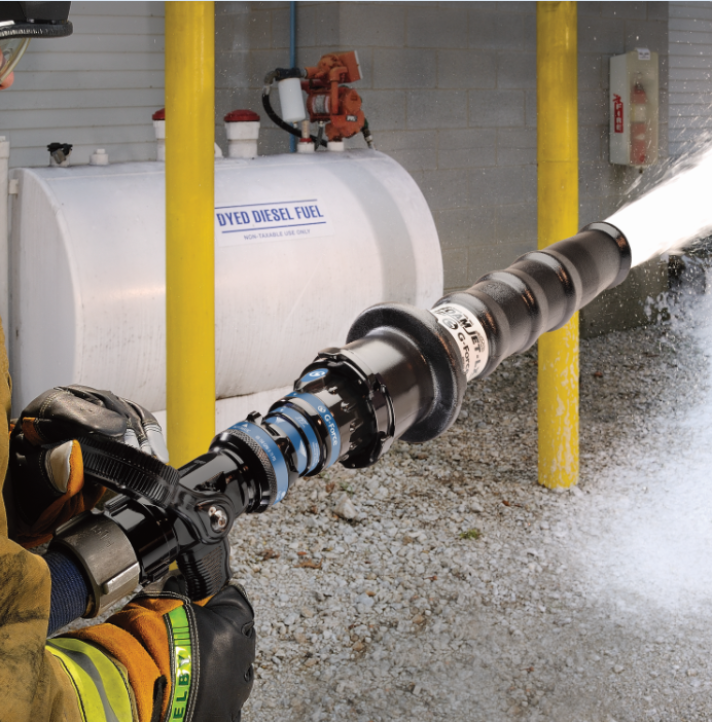

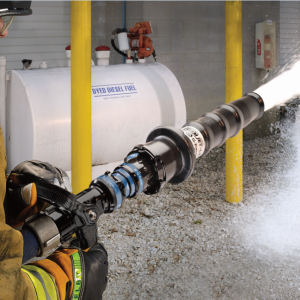

The TFT G-Force Nozzle (Model GH3N2S) is a one-piece selectable gallonage handline nozzle with slide valve and pistol grip. Available with a 65mm (2.5") BIC Male Inlet, it offers five selectable flow settings at 7 bar operating pressure, spinning stainless steel teeth, and a tactile indicator with pattern detent for gloved-hand operation. FM Approved and NFPA #1964 Compliant, backed by TFT's exclusive 5-Year Warranty.

Key Features

  • G-Force selectable gallonage nozzle — 5 flow settings at a single operating pressure
  • 65mm (2.5") BIC Male Inlet — standard Indian market connection
  • Selectable flows: 110 / 230 / 360 / 470 / 570 LPM @ 700 kPa (7 bar)
  • Tactile indicator with pattern detent — operable with heavy structural gloves
  • Spinning stainless steel teeth — superior fog pattern quality and reach
  • Lightweight hardcoat anodized aluminum construction
  • FM Approved | NFPA #1964 Compliant | 5 Years Warranty

Model Number

GH3N2S

Inlet Size / Type

65mm (2.5") BIC Male

Flow Settings

110 / 230 / 360 / 470 / 570 LPM @ 7 bar (700 kPa)

Operating Pressure

700 kPa (7 bar / 100 psi)

Nozzle Type

One-piece with Slide Valve and Pistol Grip

Fog Pattern Method

Spinning Stainless Steel Teeth

Body Material

Hardcoat anodized aluminum (lightweight)

Certifications

FM Approved | NFPA #1964 Compliant

Warranty

5 Years (TFT exclusive)
