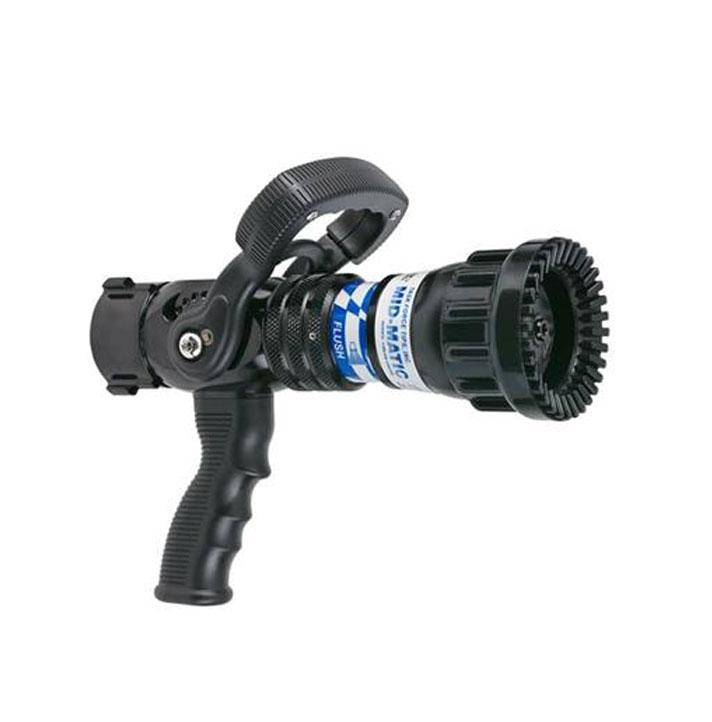

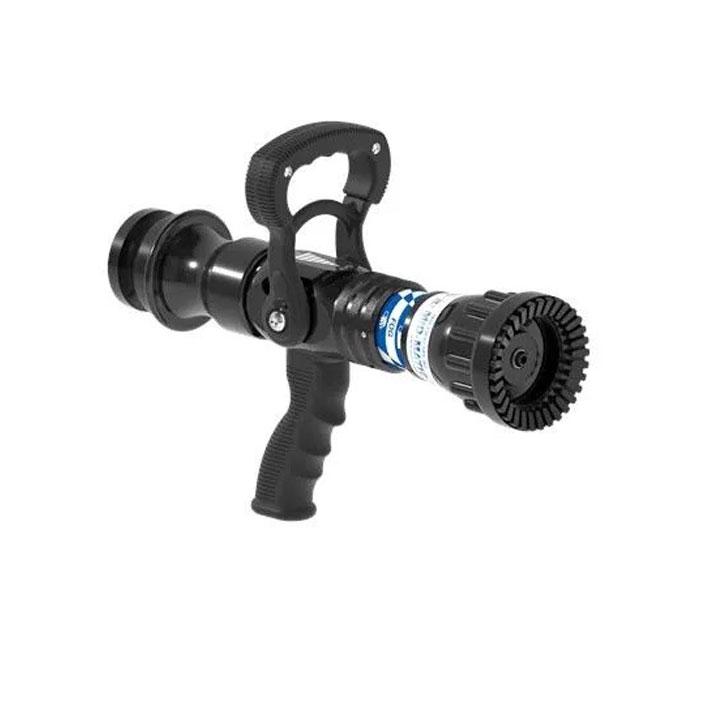

TFT Fire Fighting Nozzle - Automatic
TFT Fire Fighting Nozzle - Automatic
The TFT Mid-Matic™ (Model HM-VPGI) is an automatic constant-pressure, variable-flow handline nozzle operating at 100 psi (7 bar). Delivers 70–200 GPM (260–760 l/min) with TFT's patented turbulence-free stainless steel slide valve, six detent flow positions, and integrated "Gasket Grabber" debris screen. Available in 2.5" or 1.5" BIC male inlet. 5-year warranty.
Key Features
- Automatic nozzle — constant pressure (100 psi / 7 bar), variable flow
- Flow range: 70–200 GPM (260–760 l/min)
- Available in 2.5" or 1.5" BIC Male Inlet — Indian market standard
- Patented turbulence-free stainless steel slide valve — 6 detent flow positions
- Integrated "Gasket Grabber" debris screen — prevents stream quality degradation
- Flush without shutting down — reduces water hammer risk
- Colour-coded pistol grip and shut-off handle (NFPA 1901 compliant)
- Accepts low and multi-expansion foam attachments
- Available at 75 PSI and 55 PSI low-pressure variants | NFPA/FM Certified | 5 Years Warranty
Model Number | HM-VPGI |
Flow Control Method | Automatic — constant pressure, variable flow |
Flow Rate | 70–200 GPM (260–760 l/min) |
Operating Pressure | 100 psi (7 bar) — also available at 75 psi and 55 psi |
Inlet Size / Type | 2.5" or 1.5" BIC Male Inlet (Rocker swivel, full-time swivel) |
Valve Design | Patented slide valve — stainless steel, turbulence-free |
Flow Positions | 6 detent positions |
Fog Pattern Method | Molded rubber teeth (fixed) — full-filled pattern |
Body Material | Lightweight hardcoat anodized aluminum |
Debris Screen | Integrated "Gasket Grabber" inlet screen |
Certifications | NFPA 1964 | FM Approved |
Warranty | 5 Years (TFT exclusive) |
Website | tft.com/series/mid-matic/ |
